Seamless integration of up to 2 x 8 ADAT devices into the fastest growing Audio-over-IP Eco System.
Dante is the de facto standard for networking audio equipment. With the Verto 64 it’s now possible to easily integrate up to 64 x 64 channels via ADAT into a Dante network. No matter which ADAT device you use – the Verto 64 makes all channels immediately available in the network: “plug and play”.

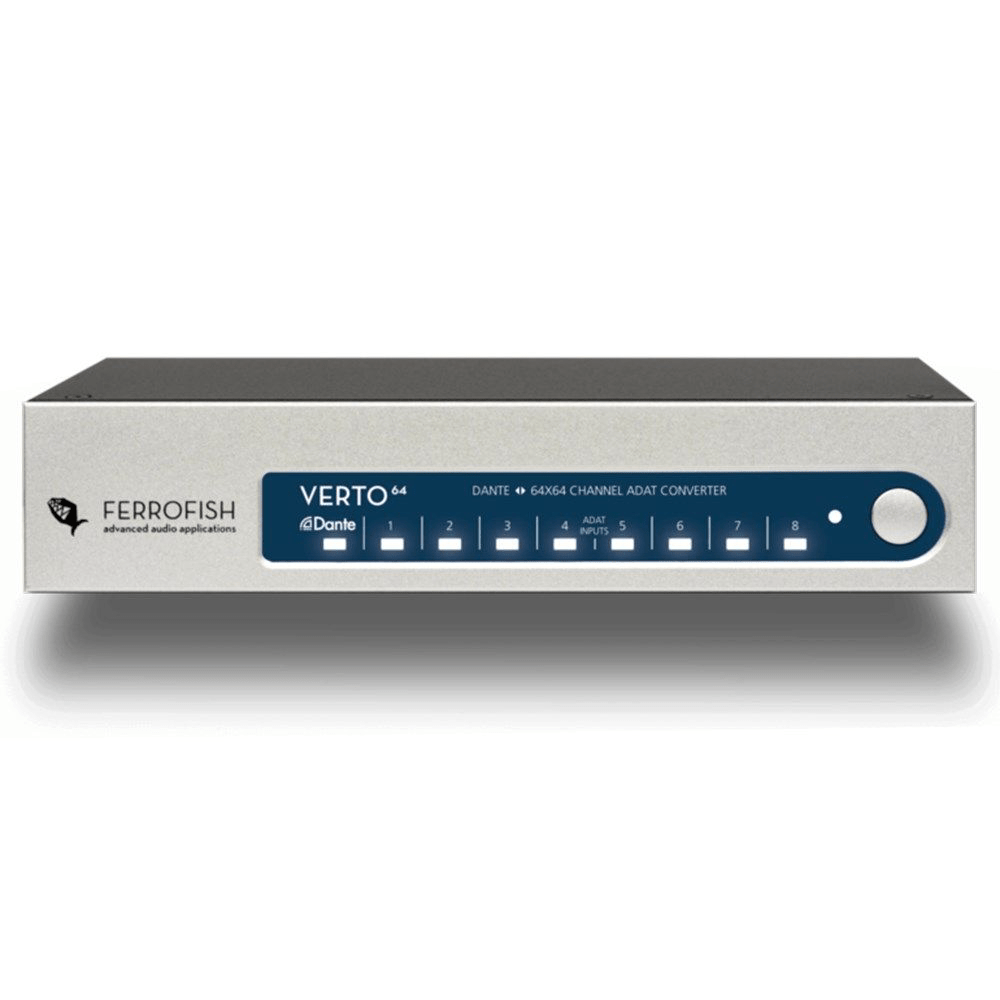

The ultra compact device has 16 ADAT connectors: 8 for transmitting, and 8 for receiving digital data (8 channels each).
On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 64 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronisation.
Utilising the Verto's MIDI I/O, The Dante data streams can be used to send and receive embedded MIDI messages. A very useful feature to remotely control MIDI equipment in
the studio rack or on stage from the FOH.
Features
- Seamless "plug-and-play" integration
- 8 x ADAT Input + 8 x ADAT Output, optical TOSLINK
- 32 x 32 channels at 48kHz, 16 x 16 channels at 96kHz
- 64 x 64 Dante I/O Channels
- Two RJ-45 ports connect to any Dante audio network.
- (4) XLR/TRS combo jacks for MIC and LINE level inputs
- MIDI I/O 2 x DIN5 connector for MIDI embedding/de-embedding
- 2 x BNC wordclock connectors
