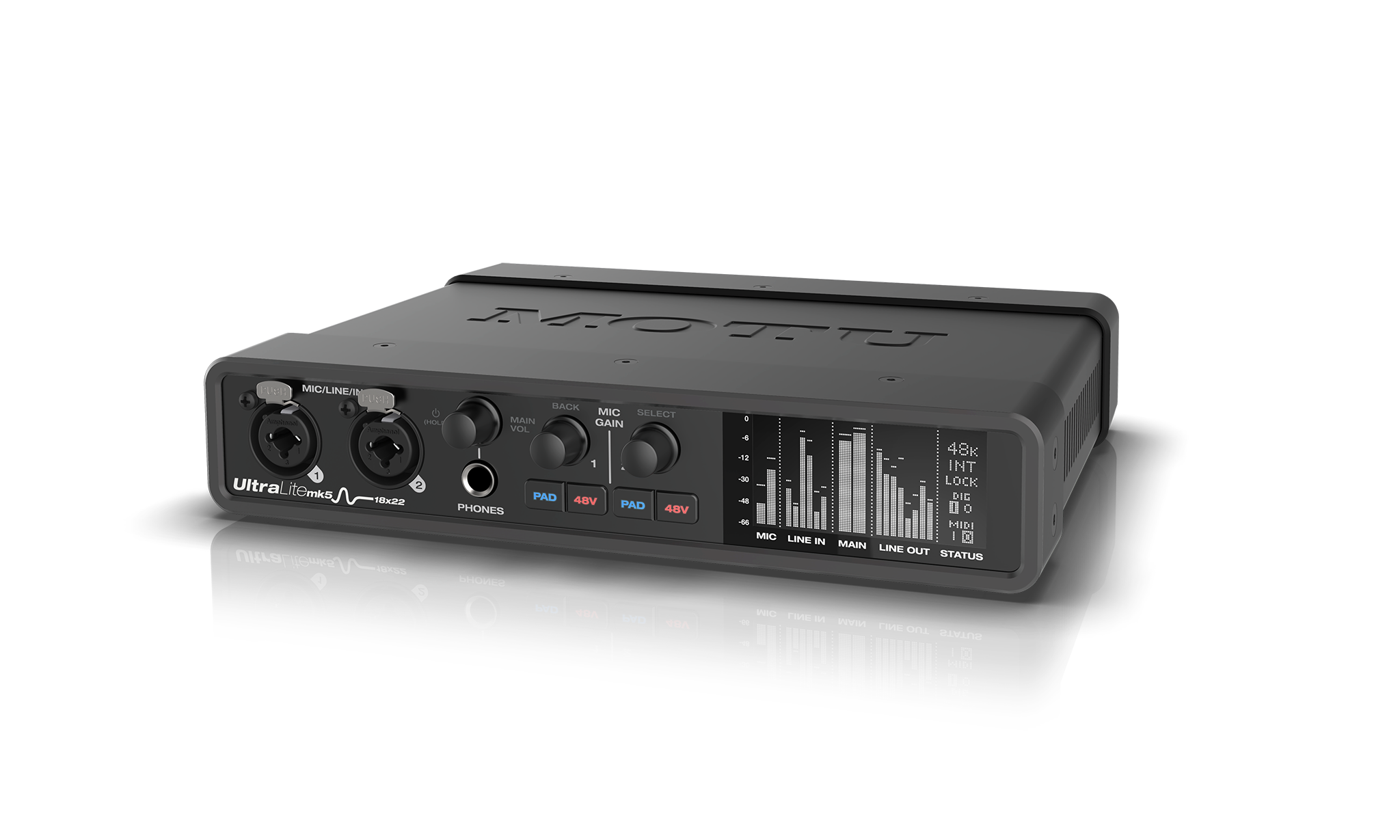

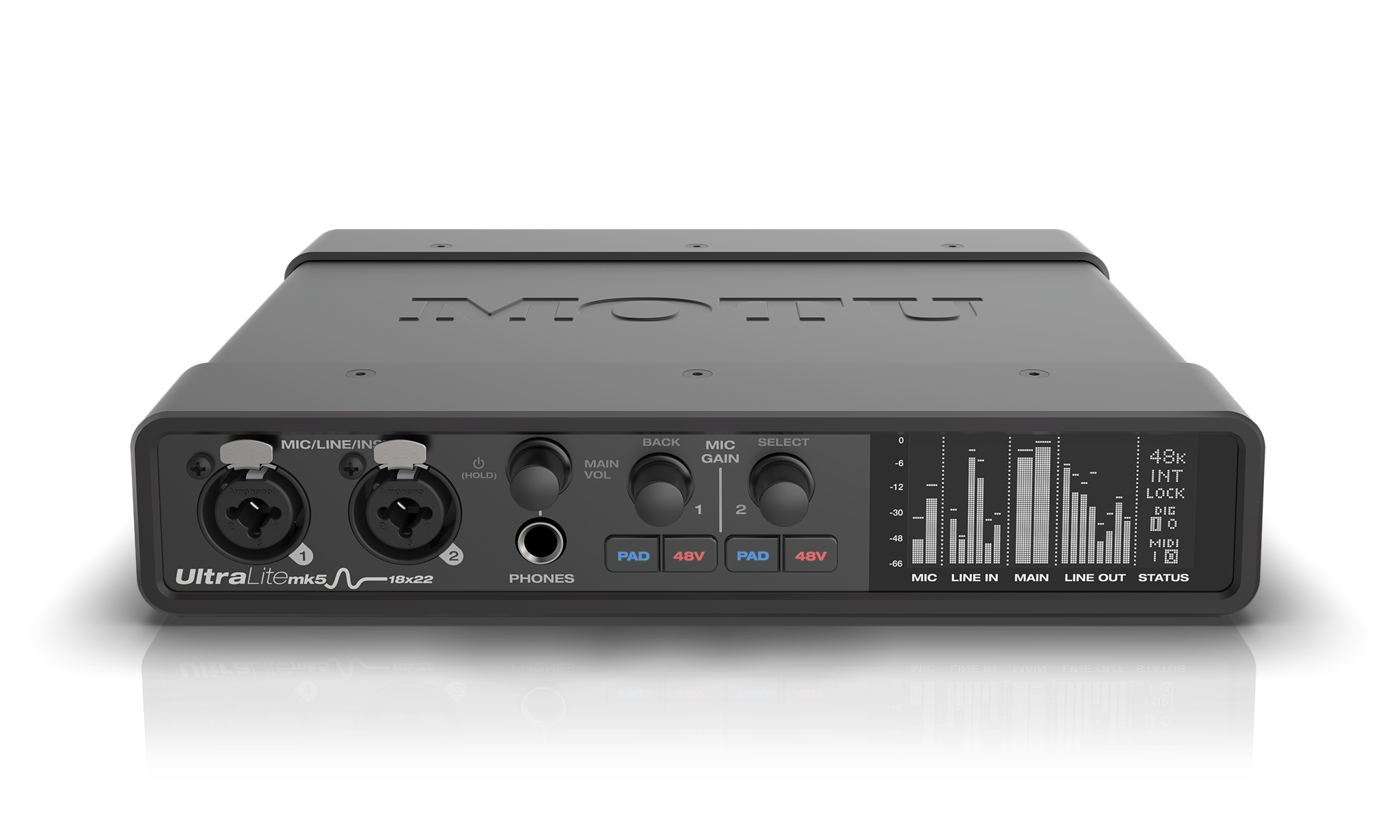

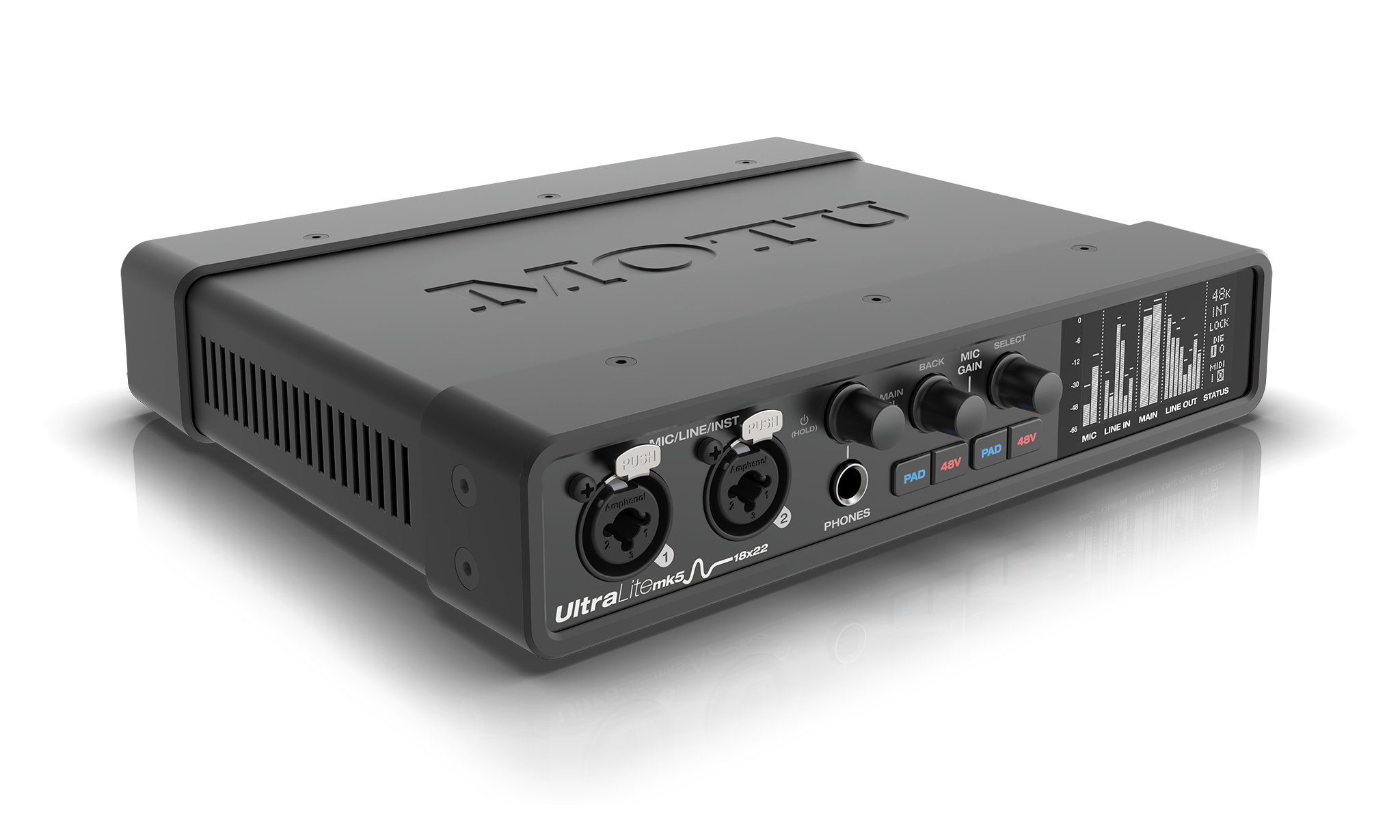

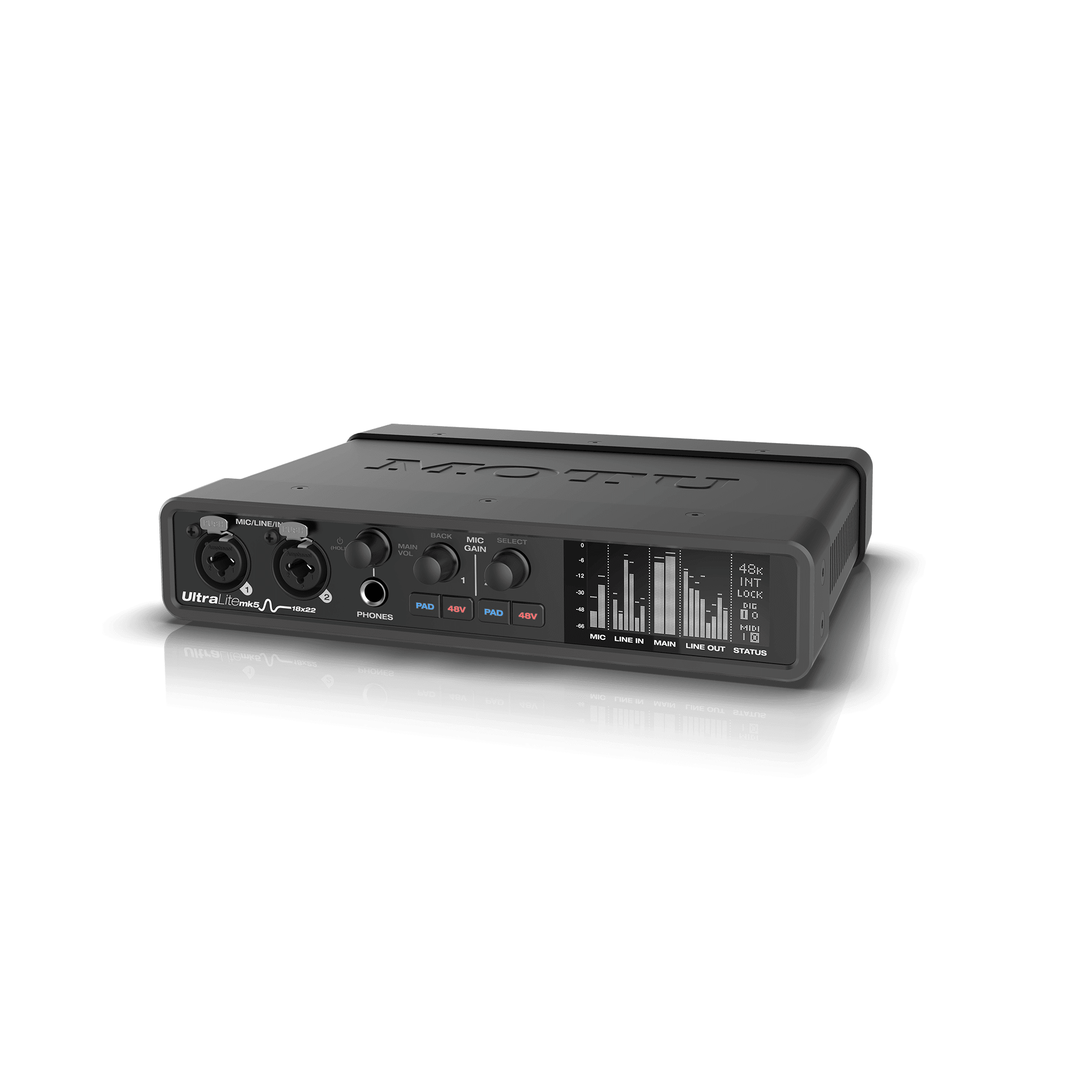

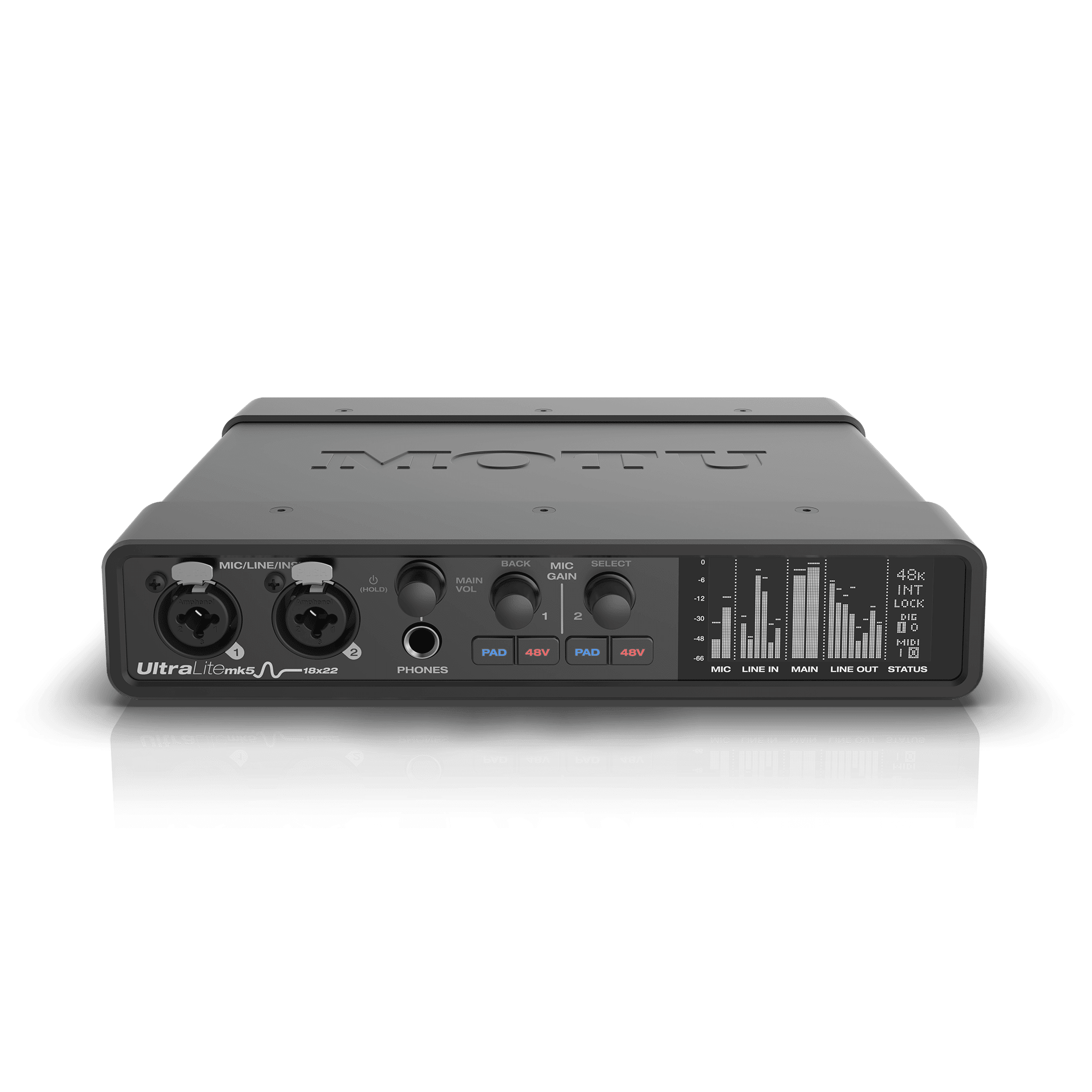

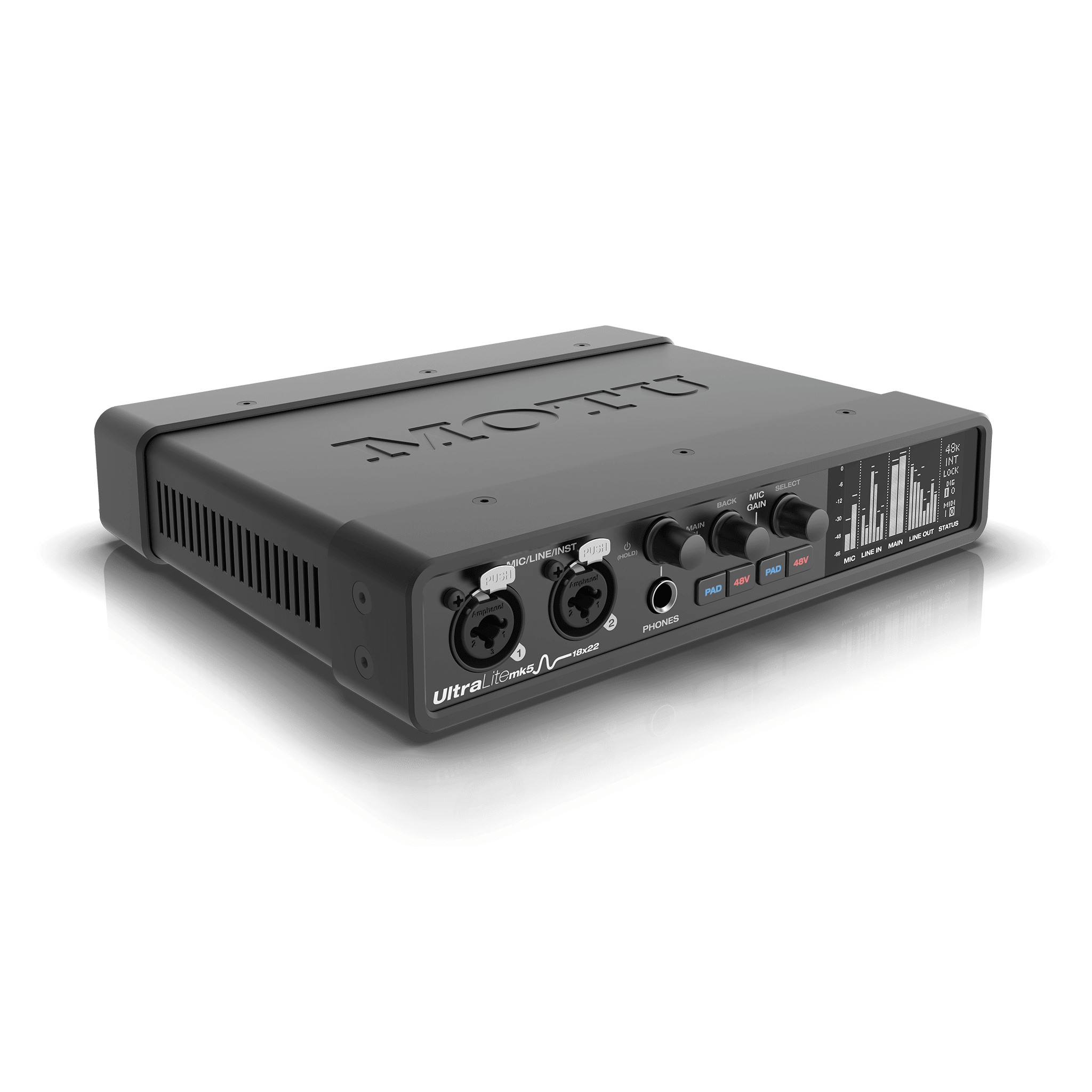

MOTU 18×22 USB interface with DSP mix & FX

The MOTU UltraLite-mk5 packs 40 simultaneous channels of pro-grade I/O into a compact, road-ready half-rack chassis. Connecting over hi-speed USB (USB-C, class compliant for Mac, PC and iOS), it pairs the reference-grade ES9026PRO ESS Sabre32 DAC — 125 dB dynamic range, -114 dB THD+N — with MOTU's optimised drivers for round-trip latency as low as 2.4 ms at up to 24-bit/192kHz.

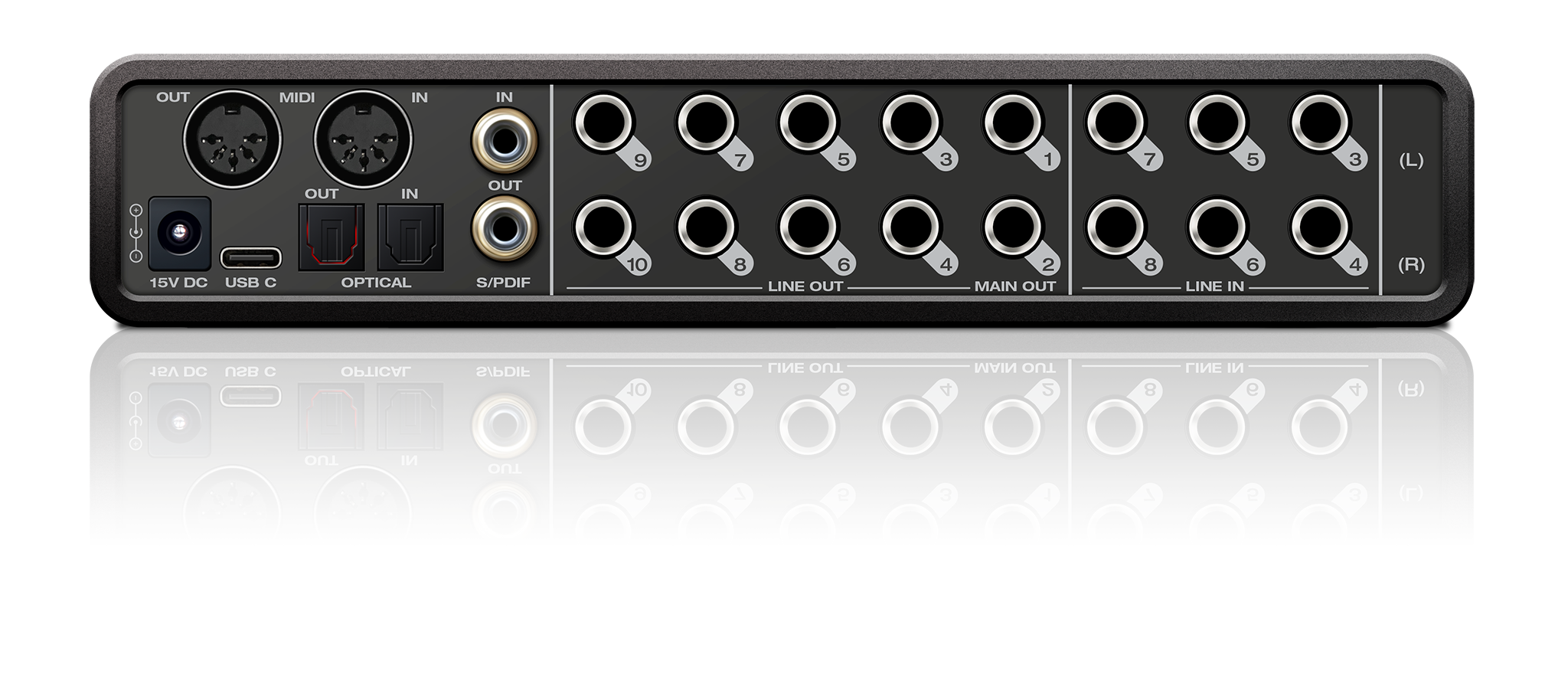

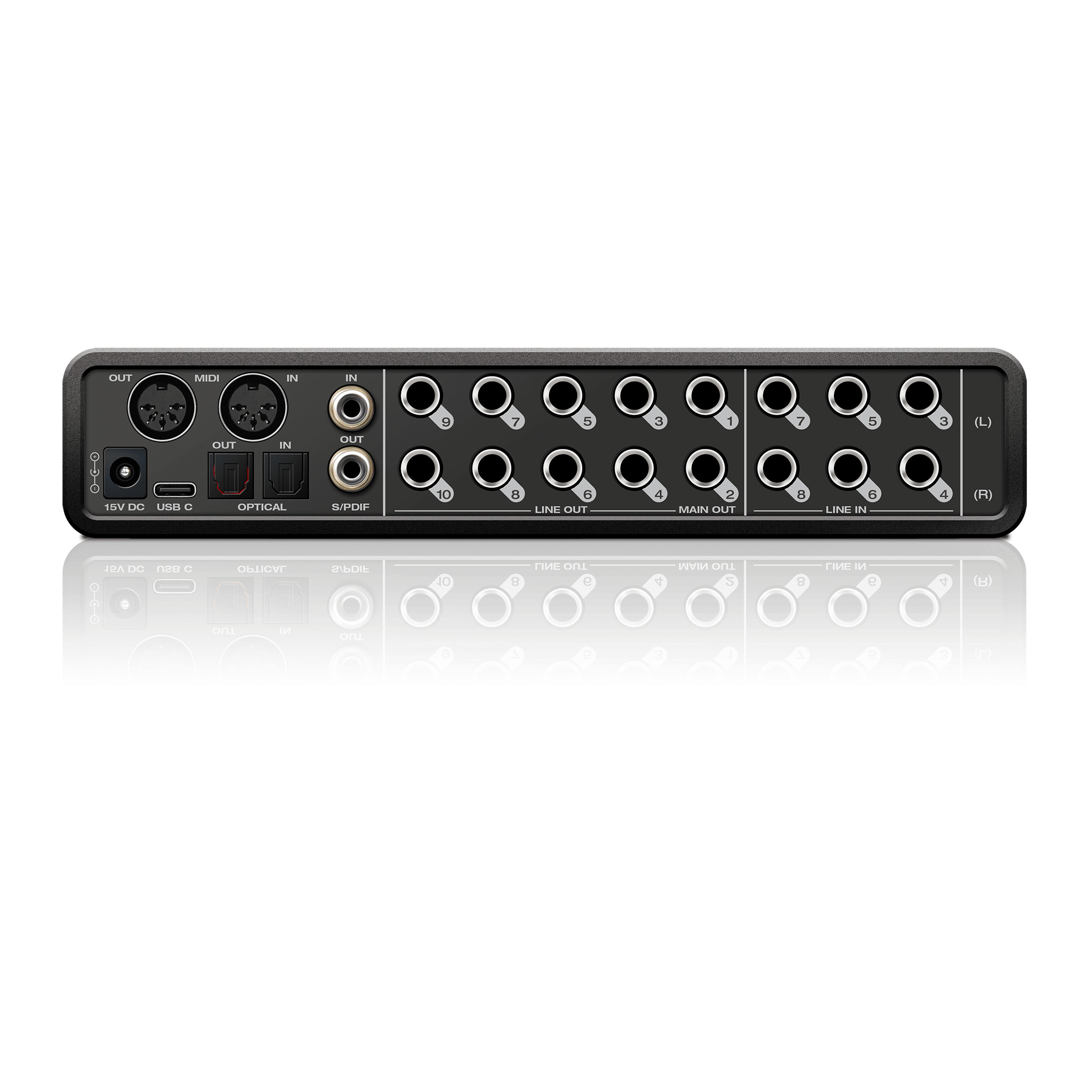

Two combo XLR/TRS inputs offer mic, line and hi-Z guitar preamps with 48V phantom power, joined by six line inputs and ten DC-coupled line outputs for flexible monitoring and outboard routing. Eight channels of optical I/O (with stereo TOSLink S/PDIF), RCA S/PDIF, MIDI in/out and a dedicated headphone output complete the connectivity, expanding the channel count well beyond the analog complement.

An onboard DSP-driven monitor mixer creates a separate mix for every output pair with reverb, 4-band parametric EQ and dynamics, controllable from the CueMix 5 app over USB or Wi-Fi. Loopback simplifies podcasting and livestreaming, while talkback, A/B monitor select and standalone operation let the UltraLite-mk5 run as a full mixer with or without a computer.

Visit Support Site

SKU MOT-ULTRALITEMK5

MOTU 18×22 USB interface with DSP mix & FX

RRP $1299.00

18×22 half-rack USB interface, 40 simultaneous channels
2x combo XLR/TRS mic/line/hi-Z preamps with 48V phantom
ES9026PRO ESS Sabre32 DAC, 125 dB dynamic range, up to 192 kHz
Measured -129 dBu EIN ultra-clean mic preamps

Vendor Item No. 8453
UPC/EAN 839128006188

MOTU 18×22 USB interface with DSP mix & FX
