MOTU MADI USB2/AVB interface with DSP and mixing

The MOTU M64 is a flexible MADI interface, router, repeater, splitter and converter with AVB-TSN networking, purpose-built for moving large MADI streams around studios, installations and live rigs. It connects to a Mac or PC over class-compliant USB 2.0 or to an AVB network over Ethernet, with ultra-low round-trip latency around 1.7 ms.

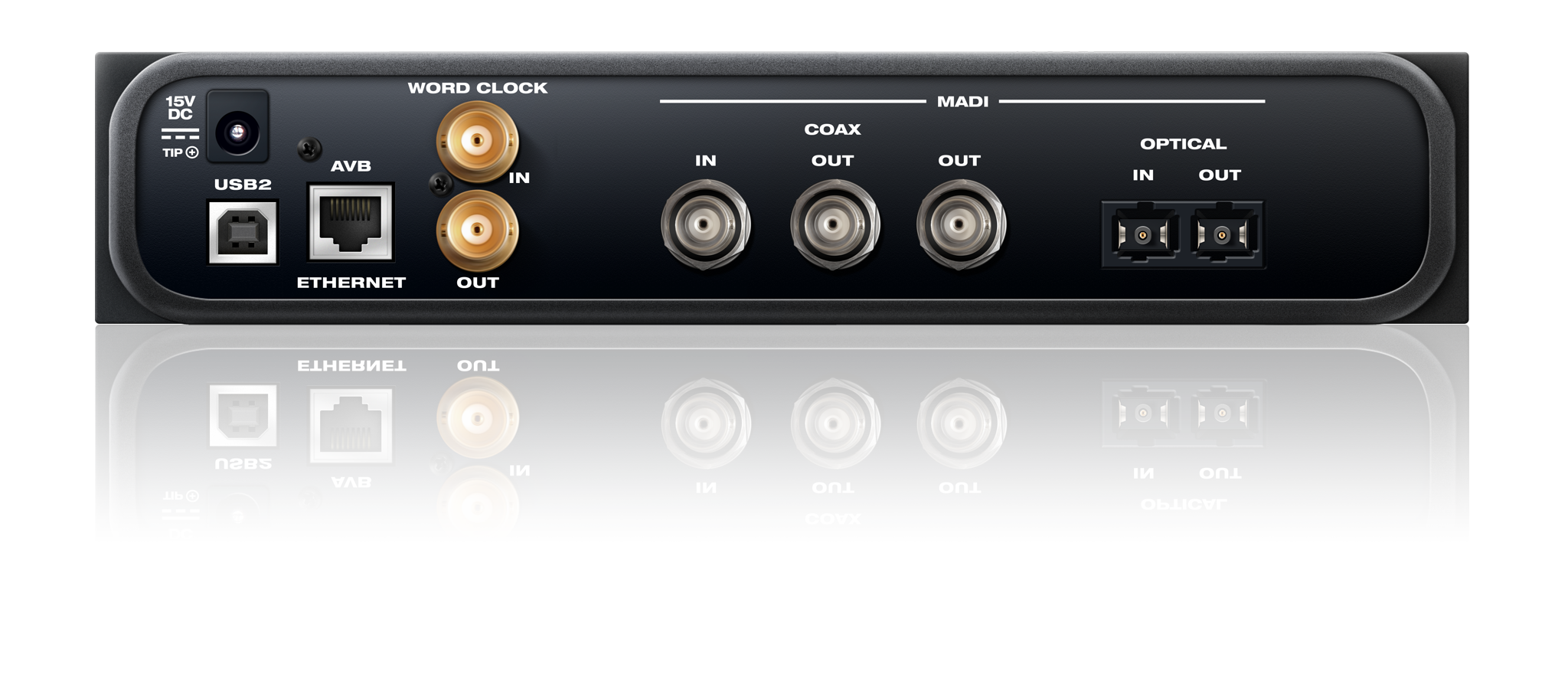

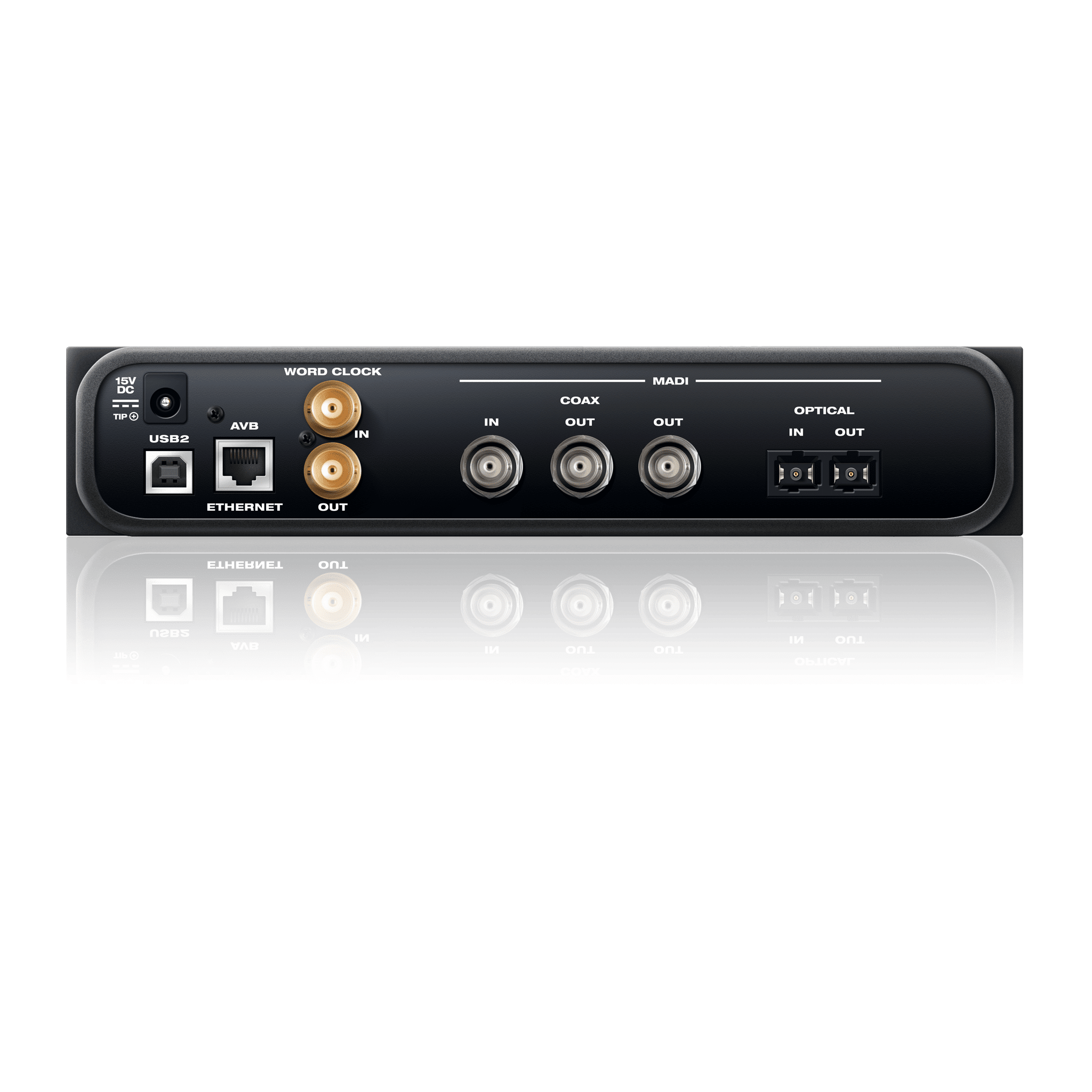

The M64 provides 64 channels of optical MADI and an independent 64 channels of coaxial BNC MADI — with a duplicate BNC output for splitting — for 256 total channels of I/O. Convert optical MADI to coax, route any input to any output, and bridge MADI to and from the computer and AVB network. Word clock I/O and a front-panel headphone output round out the connections.

A 32-bit floating-point DSP engine drives a 48-channel console-style mixer with 7 stereo aux busses, 3 groups and access to 64 network inputs, plus modeled British EQ, LA-2A-style compression and classic reverb. Control everything from the MOTU Pro Audio Control web app over Wi-Fi, run the M64 standalone, or join it side-by-side with another MOTU half-rack unit using the included bracket kit.

Visit Support Site

SKU MOT-M64

MOTU MADI USB2/AVB interface with DSP and mixing

RRP $1099.00

Compact half-rack MADI interface, router, converter & splitter
64-channel optical MADI in/out
64-channel coaxial BNC MADI in/out (with duplicate output)
256 total channels of I/O; USB 2.0 and AVB-TSN networking

Vendor Item No. 9365
UPC/EAN 839128006072

MOTU MADI USB2/AVB interface with DSP and mixing
