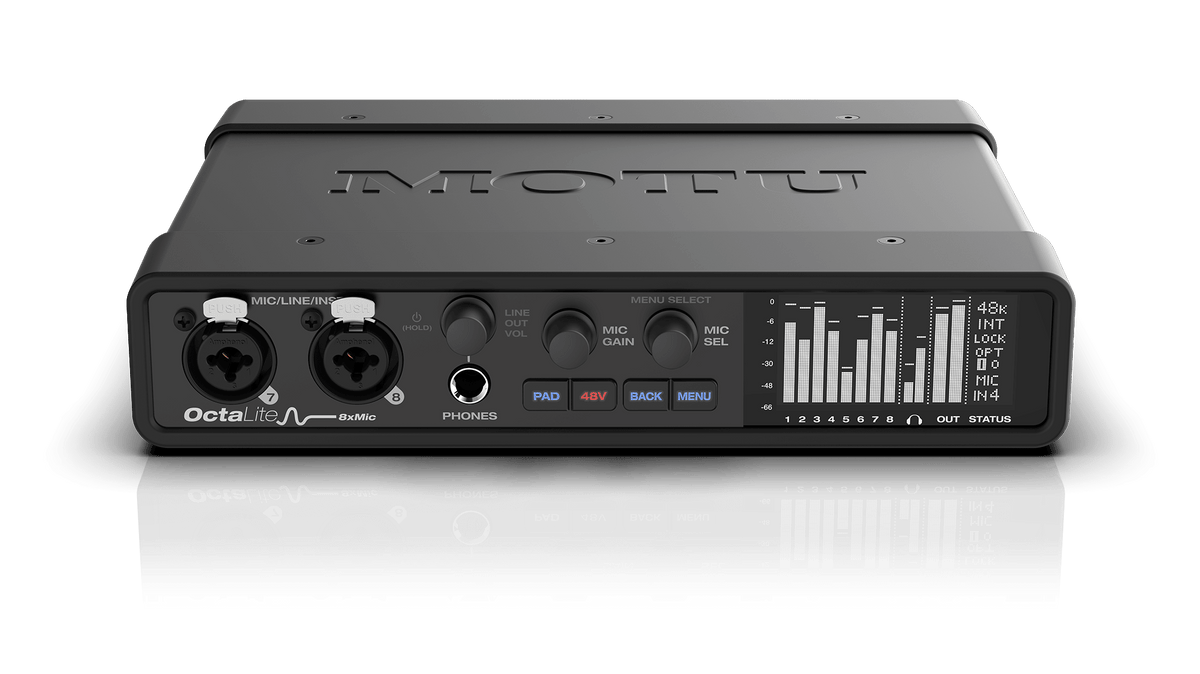

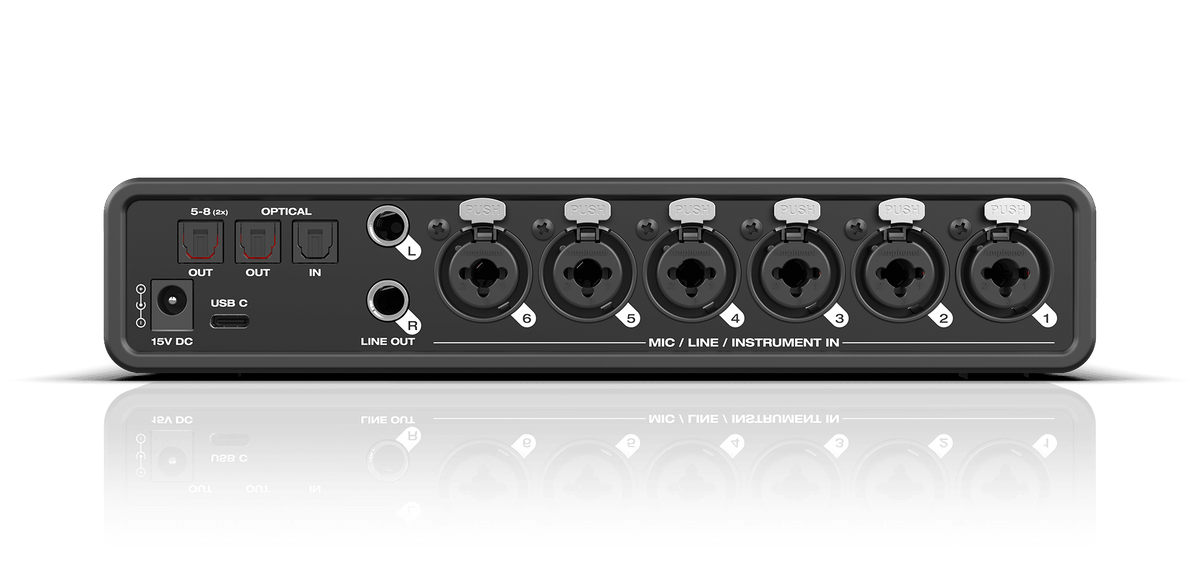

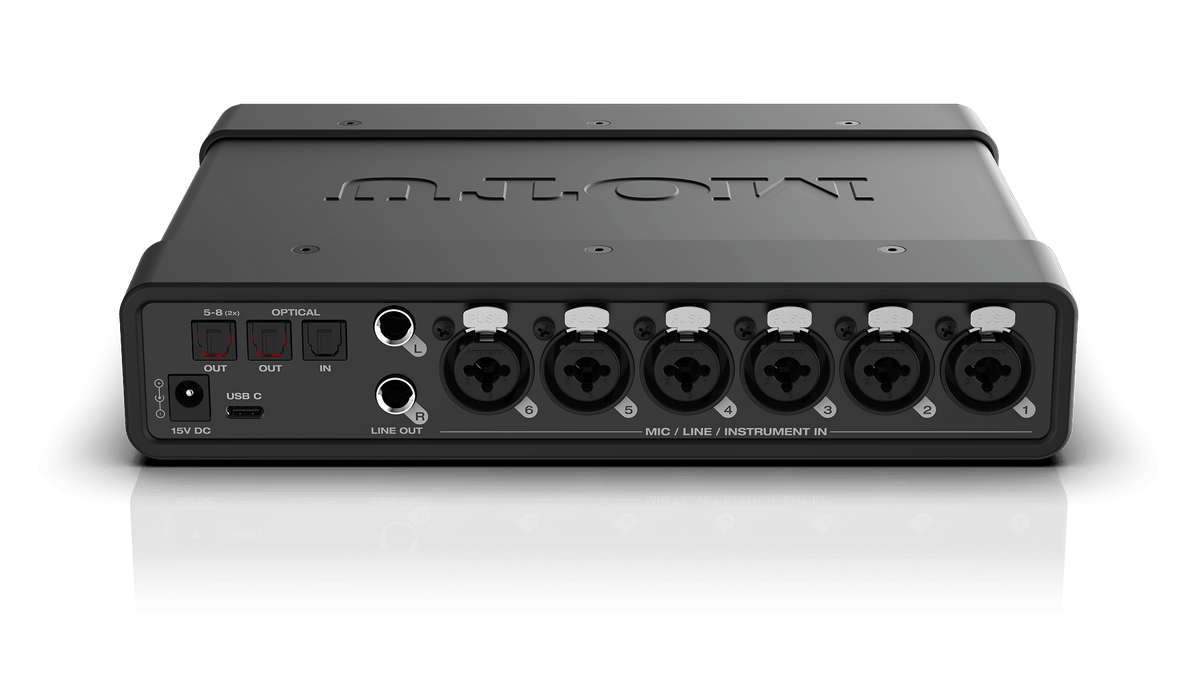

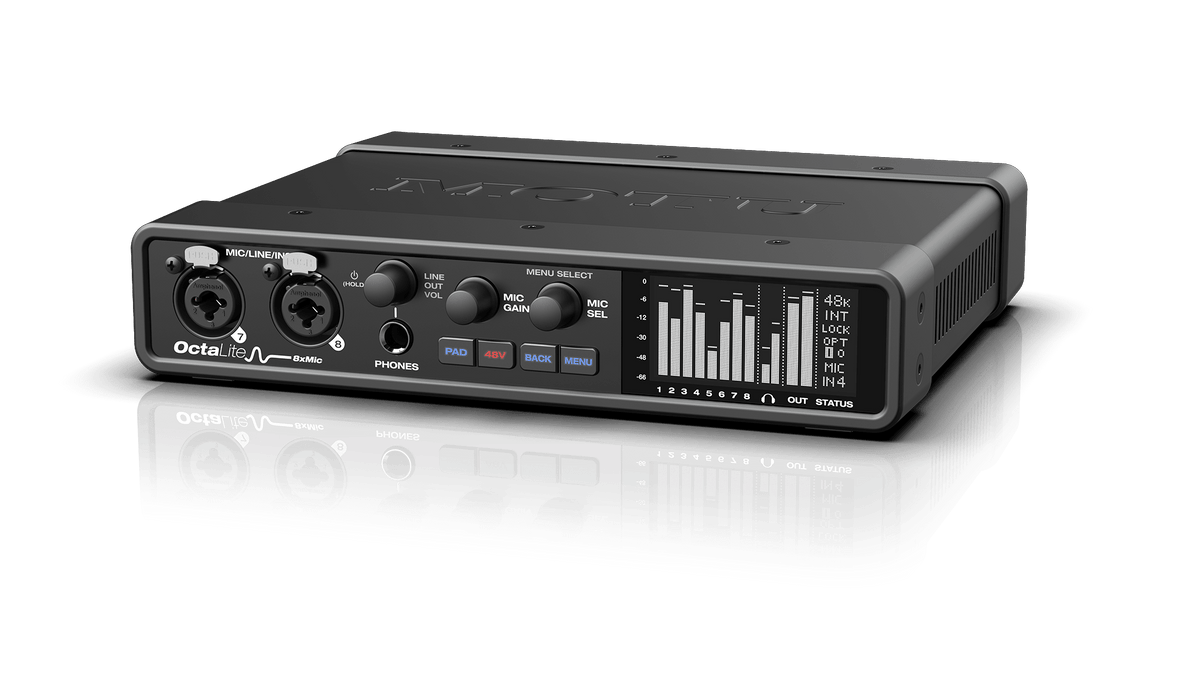

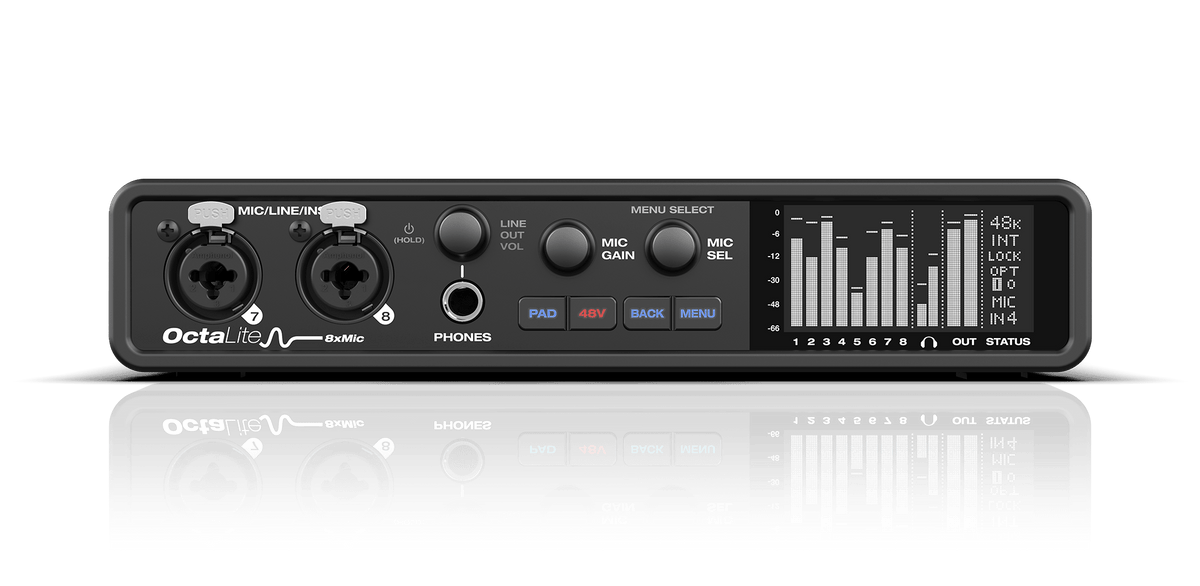

The MOTU OctaLite is a 16-input, 12-output USB audio interface and optical expander with DSP mixing, on-board effects and best-in-class analogue audio quality, housed in a compact half-rack steel enclosure. Eight combo XLR/TRS mic/line/hi-Z inputs with Burr-Brown™ op amps deliver up to +74 dB of preamp gain and a measured −129 dBu EIN, while two balanced, DC-coupled quarter-inch outputs driven by ESS Sabre32 Ultra™ DAC technology deliver 125 dB of dynamic range at sample rates up to 192 kHz.

Use it three ways. Connect to a Mac, PC or iOS device over USB-C for recording with 2 ms round-trip latency; run it as a standalone mixer with no computer attached; or use it as an 8-channel optical expander to add eight mic/line/instrument inputs to a MOTU UltraLite-mk5 or other audio interface with a single optical cable. Two OctaLites mounted side by side give you sixteen mic inputs in a single rack space (mounting kits sold separately).

The DSP-driven mixer creates separate mixes for the headphones and monitor outputs, with three virtual mix buses plus reverb, 4-band parametric EQ, compression and gating, all running independently of your computer. Loopback channels make live streaming and podcasting straightforward, a high-resolution OLED display meters all analogue I/O, and the included CueMix 5 app and MOTU Performer Lite software, with over 100 instruments and 6 GB of loops, get you making music straight away.

SKU MOT-OCTALITE

MOTU OctaLite 16x12 USB Audio Interface and Optical Expander with DSP

$1,499

16 in / 12 out USB-C audio interface (28 channels at 44.1/48 kHz)
8 combo XLR/TRS mic/line/hi-Z inputs with individual 48V
+74 dB preamp gain and −129 dBu EIN
125 dB dynamic range on balanced, DC-coupled outputs

Vendor Item No. 8515
UPC/EAN 839128006355

MOTU OctaLite 16x12 USB Audio Interface and Optical Expander with DSP
